Section Bending Machine

NHSYL008:

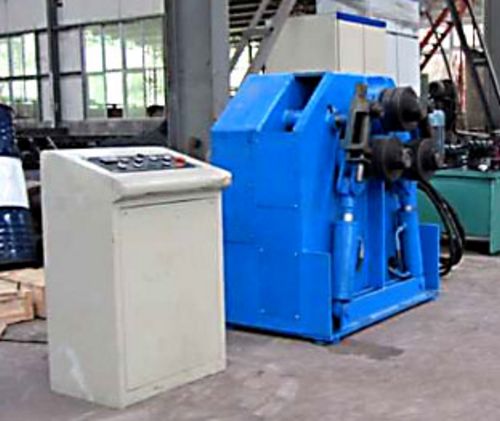

New, China W24S-200 Section Bending Machine

Max section modulus 200 cm³
Angle leg out: Max cross section 160x160x16 mm; Min bending diameter 2000mm
Angle leg in: Max cross section 160x160x16 mm; Min bending diameter 2400mm
Flat-along face: Max cross section 150x60 mm; Min bending diameter 1400mm
Flat-along edge: Max cross section 280x50 mm; Min bending diameter 1200mm
U-beam leg-out: U-beam model 30; Min bending diameter 2300mm
U-beam leg-in: U-beam model 30; Min bending diameter 2500mm
Solid bar: diameter 130mm; Min bending diameter 2400mm
Pipe (diameter x pipe thickness): 140x10 mm; Min bending diameter 3000mm
T-beam (width (height) x thickness): 150x14 mm; Min bending diameter 3000mm
I-beam: I beam model 22; Min bending diameter 4000mm
Square (width x thickness): 145x8 mm; Min bending diameter 3000mm
Rectangular (length x width x thickness): 160x50x6 mm; Min bending diameter 3000mm
Bending speed 5 m/min
Hydraulic pressure 20 Mpa
Main motor 15 kw

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used section bending machine (section benders, section bending machine, section rolling machine, section rolls, ring roller, ring rolling machine, angle iron rolling machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
