Sahinler HPK 120 Hydraulic Section & Pipe Bending Machine

NHSSL008:

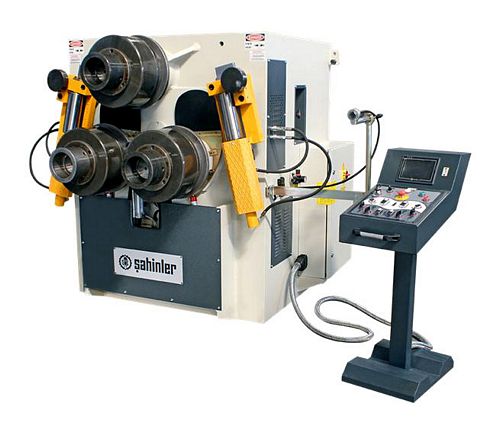

New, Sahinler HPK 120 Hydraulic Section & Pipe Bending Machine

  • Angle leg-out (max):120x120x12mm (dia 1200mm)
  • Angle leg-out (min): 40x40x4mm (dia 600mm)
  • Angle leg-in (max section): 100x100x10mm; Min bending dia 1200mm
  • Angle leg-in (min section): 40x40x4mm; Min bending dia 600mm
  • Flat on-edge (max section): 125x25mm; Min bending dia 1200mm
  • Flat on-edge (min section): 30x10mm; Min bending dia 500mm
  • Flat on-face (max section): 200x50mm; Min bending dia 1000mm
  • Flat on-face (min section): 100x10mm; Min bending dia 500mm
  • Solid square bar (max section): 65x65mm; Min bending dia 750mm
  • Solid square bar (min section): 20x20mm; Min bending dia 500mm
  • Solid round bar(max section): Ø80mm; Min bending dia 850mm
  • Solid round bar (min section): Ø20mm; Min bending dia 500mm
  • Pipe (max section) Ø5" x 6.35; Min bending dia 1500mm
  • Pipe (min section) Ø3/4"x2.87; Min bending dia 500mm
  • Pipe (max section): Ø160x4mm; Min bending dia 2800mm
  • Pipe (min section): Ø140x3mm; Min bending dia 1500mm
  • Square pipe (max section): 120x40x4mm; Min bending dia 1800mm
  • Square pipe (min section): 30x20x3mm; Min bending dia 500mm
  • T leg-out 100x11mm (max section); Min bending dia 800mm
  • T leg-out 30x4mm (min section); Min bending dia 500mm
  • T leg-in 100x11mm (max section); Min bending dia 1000mm
  • T leg-in 30x4mm (min section); Min bending dia 500mm
  • U channel leg-out UPN 220 (max section); Min bending dia 1000mm
  • U channel leg-out UPN 180 (min section); Min bending dia 800mm
  • U channel leg-in UPN 220 (max section); Min bending dia 1200mm
  • U channel leg-in UPN 180 (min section); Min bending dia 900mm
  • Shaft diameter Ø120mm, Rolls diameter Ø390mm
  • Working speed 2-7.5 m/min, Motor 15 kw
  • Overall Dimensions: 2,000 mm (L) x 1,650 mm (W) x 1,900 mm (H)
  • Weight approximately 4.8 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used section bending machine (section benders, section bending machine, section rolling machine, section rolls, ring roller, ring rolling machine, angle iron rolling machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
