Section Bending Machine

NHSSL004:

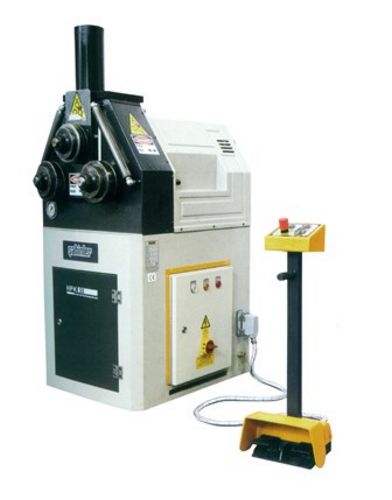

New, Sahinler HPK 50 Hydraulic Section & Pipe Bending Machine

• Angle leg-out (max section): 50x50x6mm; Min bending dia 600mm
• Angle leg-out (min section): 30x30x3mm; Min bending dia 400mm
• Angle leg-in (max section): 50x50x6mm; Min bending dia 900mm
• Angle leg-in (min section): 30x30x3mm; Min bending dia 600mm
• Flat on-edge(max section): 60x10mmmm; Min bending dia 600mm
• Flat on-edge (min section): 20x10mm; Min bending dia 300mm
• Flat on-face (max section): 100x15mm; Min bending dia 600mm
• Flat on-face (min section): 50x10mm; Min bending dia 300mm
• Solid square bar (max section): 35x35mm; Min bending dia 600mm
• Solid square bar (min section): 15x15mm; Min bending dia 300mm
• Solid round bar (max section): Ø35mm; Min bending dia 600mm
• Solid round bar (min section): Ø20mm; Min bending dia 300mm
• Pipe (max section): 2"x2.9; Min bending dia 1000mm
• Pipe (min section): 1/2"x2.3; Min bending dia 300mm
• Pipe (max section): Ø70x2; Min bending dia 1200mm
• Pipe (min section): Ø25x1.5; Min bending dia 400mm
• Square pipe (max section): 70x30x3mm; Min bending dia 1500mm

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.
