Section Bending Machine

NHSSL001:

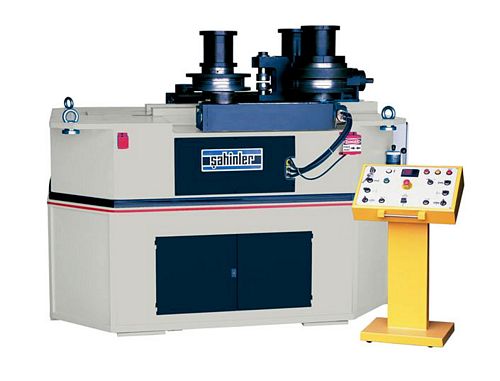

New, Sahinler HPK 150 Hydraulic Section & Pipe Bending Machine

Angle leg-out 150x150x18mm; Min bending dia 2200mm
Angle leg-in 150x150x15mm; Min bending dia 3000mm
Flat on-edge 150x35mm; Min bending dia 2500mm
Flat on-face 270x50mm; Min bending dia 1500mm
Solid square bar 90x90mm; Min bending dia 1500mm
Solid round bar Ø90mm; Min bending dia 1800mm
Pipe Ø6" x 7.11; Min bending dia 6000mm
Pipe Ø150x4mm; Min bending dia 3500mm
Square pipe 150x50x5mm; Min bending dia 4500mm
T leg-out 150x15mm; Min bending dia 2000mm
T leg-in 130x15mm; Min bending dia 2500mm
U channel leg-out UPN 280; Min bending dia 2000mm
U channel leg-in UPN 280; Min bending dia 3000mm
Shaft diameter Ø150mm
Rolls diameter Ø470mm
Working speed 3-6 m/min
Main motor 22 kw
Overall Dimensions: 2,400 mm (L) x 2,200 mm (W) x 2,200 mm (H)
Weight approximately 8.9 ton

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used section bending machine (section benders, section bending machine, section rolling machine, section rolls, ring roller, ring rolling machine, angle iron rolling machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
