Plate Bending Rolls

NHRYL249:

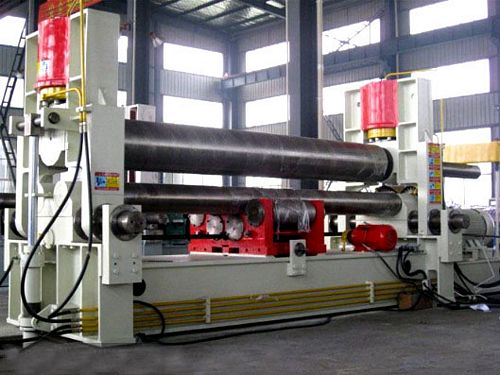

New, China W11SNC-12x3000 Plate Bending Roll

Rolling Thickness 12 x 3000mm (At Dia. 750mm)
Prebending Thickness 10 x 3000mm (At Dia. 750mm)
Top Roll Pressure 100 Ton
Plate Yield Limit 24 MPa
Plate Width 3000mm
Top Roll Diameter 320mm
Bottom Rolls Diameter 160mm
Distance Between Bottom Rolls Center-to-Center 300mm
Diameter of Supporting Roller 160mm
Rolling Speed 3.5 m/min
Top Roll Descending Speed 120 mm/min
Top Roll Ascending Speed 200 mm/min
Top Roll Horizontal Moving Speed 100 mm/min
Top Roll Synchronous Precise/Accuracy: ± ≤0.20 mm
Top Roll Moving Precise/Accuracy: ± ≤0.20 mm
Top Roll Re-Position Precise/Accuracy: ± ≤0.20 mm
Main Motor 15 kW
Hydraulic Motor 5.5 kW
Motor for Shifting 2.2 kW
Max Working Pressure 19.5 Mpa

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used plate bending rolls (plate rolls, plate rolling machine, plate rollers, plate bender, plate bending machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
