Plate Bending Rolls

NHRYL224:

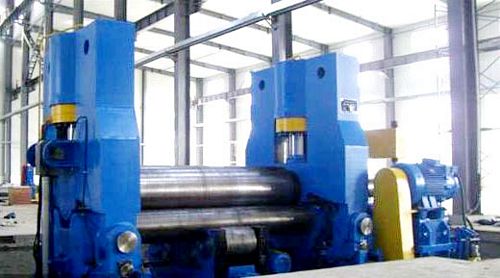

New, China W11S-155x3100 Plate Bending Roll

Rolling thickness 155 x 3100mm (at dia 3000mm)
Prebending thickness 125 x 3100mm (at dia 3000mm)
Type: Economic NC controlled
Top roll pressure 2800 t
Length of working rolls 3200mm
Plate width 3100mm
Width of straight ends at full loading capacity ≤2.5 x plate thickness
Top roll diameter 1160mm
Bottom rolls diameter 680mm
Distance between bottom rolls center-to-center 1250mm
Rolling speed: about 3.5 m/min
Diameter of supporting roller 700mm
No. of supporting roller 1 group, 4 rollers/group
Top roll pressure speed: about 130 mm/min
Main motor 2 x 110 kw
Hydraulic motor 2 x 55 kw
Motor for shifting 55 kw
Supporting motor 22 kw
Weight approximately 340 ton

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used plate bending rolls (plate rolls, plate rolling machine, plate rollers, plate bender, plate bending machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
