Plate Bending Rolls

NHRYL218:

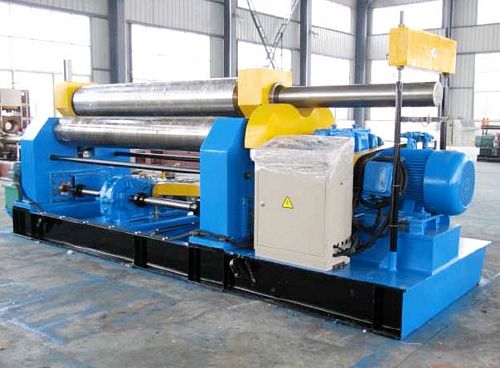

New, China W11-25x2500 Plate Bending Roll

Plate thickness 25mm
Plate width 2500mm
Pressure 245 Mpa
Full loading min coiling diameter 1000mm
Top roll diameter 360mm
Bottom rolls diameter 300mm
Top roll material 45# forged steel
Bottom rolls center-to-center 480mm
Coiling speed: about 4 m/min
Main motor 22 kW
Assistant motor 5.5 kW

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used plate bending rolls (plate rolls, plate rolling machine, plate rollers, plate bender, plate bending machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
