Plate Bending Rolls

NHRYL214:

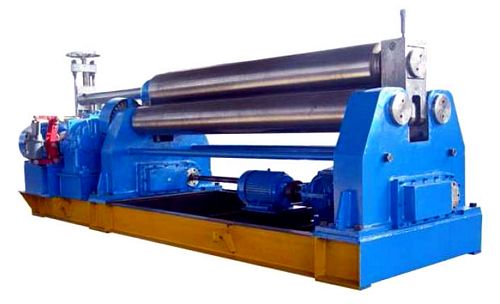

New, China W11-16x2000 Plate Bending Roll

Plate thickness 16mm
Plate width 2000mm
Top roll diameter 260mm
Bottom rolls diameter 220mm
Pressure 245 Mpa
Full loading min coiling diameter 600mm
Upper roller material 45# forged steel
Bottom rolls center-to-center 320mm
Coiling speed: about 4 m/min
Main power 11 kW
Assistant motor 5.5 kW
380V/50Hz/3 Phase

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used plate bending rolls (plate rolls, plate rolling machine, plate rollers, plate bender, plate bending machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
