Plate Bending Rolls

NHRYL210:

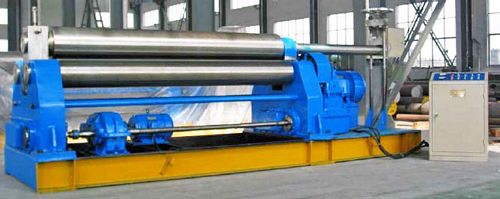

New, China W11-20x3200 Plate Bending Roll

Plate thickness 20mm
Plate width 3200mm
Pressure 245 Mpa
Full-loading min coiling diameter 1000mm
Top roll diameter 360mm
Bottom rolls diameter 260mm
Upper roller material 45# forged steel
Bottom rolls center-to-center 480mm
Coiling speed about 4 m/min
Main motor 22 kW
Assistant motor 5.5 kW
Overall Dimensions: 5,500 mm (L) x 1,500 mm (W) x 1,800 mm (H)
Weight approximately 11 ton

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used plate bending rolls (plate rolls, plate rolling machine, plate rollers, plate bender, plate bending machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
