China W11S-10x3200 Plate Bending Roll

NHRYL205:

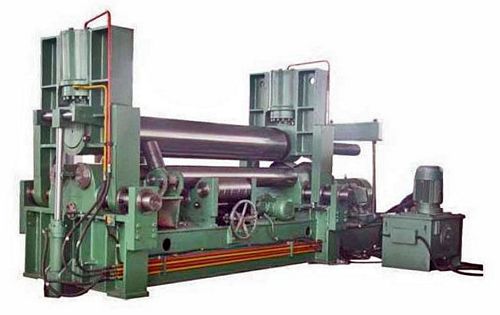

New, China W11S-10x3200 Plate Bending Roll

  • Rolling thickness 10mm x 3200mm (at 850 dia)
  • Prebending thickness 8mm x 3200mm (at 850 dia)
  • Upper roller pressure 65 tons
  • Top roll diameter 280mm
  • Bottom roll diameter 145mm
  • Distance between bottom rolls center-to-center 200mm
  • Plate width 3200mm
  • Length of working rolls 3300mm
  • Coiling speed ≈ 3.5 m/min
  • Supporting roller: one group, four rollers per group
  • Capacity  <=245 Mpa
  • Main motor 5.5 kW
  • Hydraulic motor 4 kW
  • Motor for shifting 0.75 kW 11
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used plate bending rolls (plate rolls, plate rolling machine, plate rollers, plate bender, plate bending machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
