Plate Bending Rolls

NHRYL200:

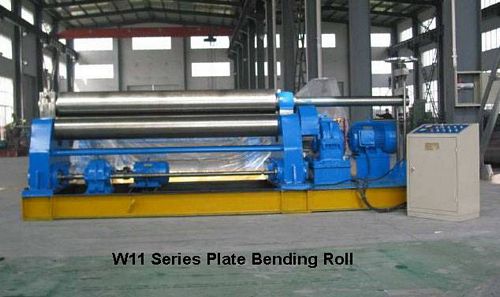

New, China W11-10x2500 Plate Bending Roll

Plate thickness 10mm
Plate width 2500mm
Full loading min. coiling diameter 700mm
Top roll diameter 260mm
Bottom rolls diameter 200mm
Upper roll material 45# forged steel
Pressure 245 Mpa
Bottom rolls center-to-center 300mm
Coiling speed: about 4 m/min
Main motor 7.5 kW
Assistant motor 4 kW
Overall Dimensions: 4,200 mm (L) x 1,200 mm (W) x 1,300 mm (H)
Weight approximately 4.0 ton

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used plate bending rolls (plate rolls, plate rolling machine, plate rollers, plate bender, plate bending machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
