Plate Bending Rolls

NHRBK055:

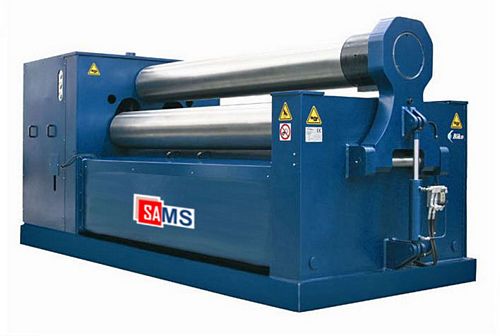

New, Sams B3 3195 Synchronized 3-Roll Double Pinch Plate Bending Machine

Length of rolls 3050mm
Rolling capacity (cold) 145mm (at dia 4500mm)
Prebending capacity (cold) 120mm (at dia 4500mm)
Rolling capacity (cold) 125mm (at dia 1250mm)
Prebending capacity (cold) 105mm (at dia 1250mm)
Cone capacity by continuous rolling = 60% of prebending thickness
Cone capacity by pressing = 100% of prebending thickness
No. of rolls: 3
Top roll diameter 950mm
Bottom rolls diameter 860mm
Geometry: PLANETARY
Powered driving rolls: 3 (directly splined on the roll shaft)
Surface speed: automatic
Rolling speed 5 mt/min
Rolls movement adjustment: hydraulic
Main motor ES 250 HP
Weight approximately 135 ton

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used plate bending rolls (plate rolls, plate rolling machine, plate rollers, plate bender, plate bending machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
