Plate Bending Rolls

NHRBK005:

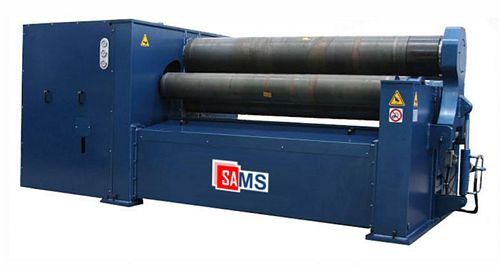

New, Sams B4 3138 Synchronized 4-Roll Double Pinch Plate Bending Machine

Length of rolls 3050mm
Rolling capacity (cold) 25mm (at diameter 1900mm)
Prebending capacity (cold) 20mm (at diameter 1900mm)
Rolling capacity (cold) 20mm (diameter 495mm)
Prebending capacity (cold) 15mm (at diameter 495mm)
Material yield strength 260 N/mm2
Number of rolls: 4
Top roll diameter 380mm
Bottom roll diameter 360mm
Side rolls diameter 285mm
Powered driving rolls: 2
Drive system: directly splined on the roll shaft
Surface speed compensation: automatic
Rolling speed 5 Mt/min
Rolls movement adjustment: hydraulic
Main motor ES 25 HP
Overall Dimensions: 6,100 mm (L) x 2,100 mm (W) x 1,900 mm (H)
Weight approximately 17 ton

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used plate bending rolls (plate rolls, plate rolling machine, plate rollers, plate bender, plate bending machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
