Plate Bending Rolls

NHRAN034:

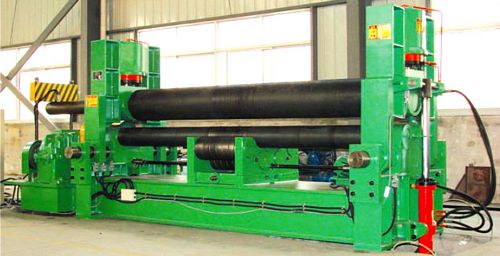

New, China TXW11S-70x4000 Three Roller Plate Bending Machine

Rolling thickness 70mm x 4000mm
Prebending thickness 56mm x 4000mm
Top roll pressure 1150mm
Top roll diameter 800mm
Bottom rolls diameter 480mm
Distance between bottom rolls center-to-center 920mm
Main motor 110 kW
Hydraulic motor 45 kW
Motor for shifting 18.5 kW

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used plate bending rolls (plate rolls, plate rolling machine, plate rollers, plate bender, plate bending machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
