Ironworker

NHISL003:

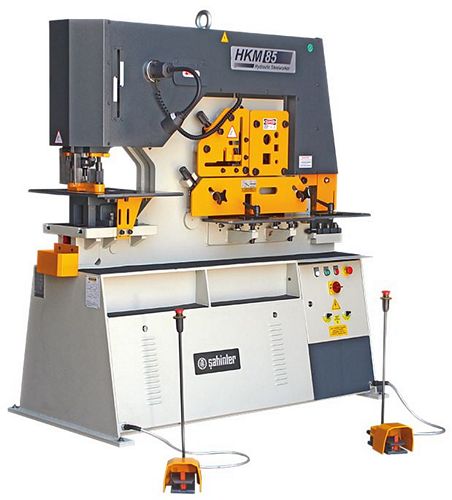

New, Sahinler HKM-85 Hydraulic Steel Worker

• Power (Pressure) 85 Ton
• Punching: Ø 33 x 20mm, Ø 57 x 12 mm, Ø 110 x 4 mm
• Round/Square Shearing: Ø 50mm, 50mm Square
• Angle Shear: 150x150x15mm (90°), 80x8 mm (45°)
• Sheet Metal Shear: 380x20 mm, 480x15 mm
• Notching: 13mm Thickness x 52mm Width x 100mm Depth
• Motor Power 7.5 kW
• Standard Equipment: Punch & Die Ø 22 mm, Punch Holder, Flat Bar Cutting Blade, Solid Round - Square Cutting Blade, Angle Shear, Notching Blade, Working Light, Centralised Lubrication System, Electrical Back Gauge, C-Spanner, User’s Manual in English
• Machine is controlled by two foot pedals (two workers can use the machine at the same time)
• Hydraulic elements: Bosch, Rexroth or Duplomatic (Italian) components used.
• Electric equipment: Siemens (German) or Telemecanique(France)
• Built according to EC Safety Directives (CE Mark) and ISO 9000 Certificate
• Overall Dimensions: 1,920 mm (L) x 950 mm (W) x 2,040 mm (H)
• Weight approximately 2.3 ton

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

For quality machinery at competitive pricing, contact us today!
