Press Brake

NHBDN059:

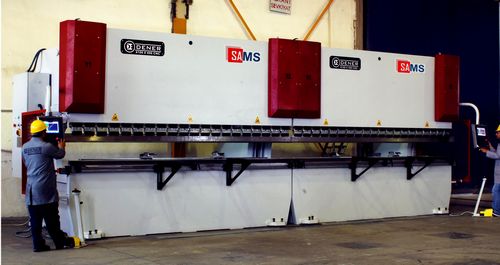

New, Sams Dener 2 x SMART XL 3100mm x 100 ton CNC Hydraulic Press Brake in Tandem

• Bending length 3100mm x 2 = 6200mm
• Bending capacity 100 ton x 2 = 200 ton
• CNC control: Esa S 530
• Distance between columns 2555mm (For 1 x SMART XL 3100)
• Daylight opening 530mm
• Throat depth 450mm
• Y axis stroke 300mm
• Y axis (landing, working, return) speeds: 180/10/160 mm/sec
• X axis stroke 650mm
• X axis working speed 200 mm/sec
• Table height 900mm
• Main motor 11 kw
• Oil tank capacity 190 lt
• Overall Dimensions: 7,410 mm (L) x 1,300 mm (W) x 2,500 mm (H)
• Weight approximately 15 ton

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

At Sunshine Innovation, we take care of our customers, thereby ensuring customers come back to us for future orders.
