Radial Drill

NDRSY001:

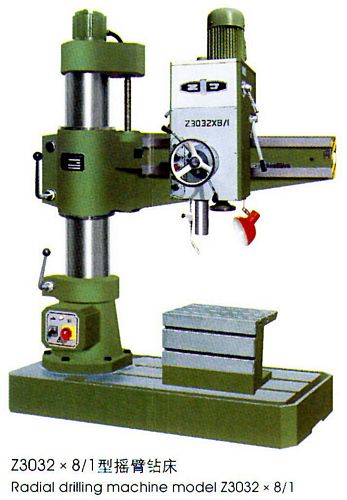

New, China Czech Z3032 x 8 Radial Drill

Maximum drilling diameter 32mm
Distance column-center to spindle 320-820 mm
Distance between spindle nose and working surface of base 240-900 mm
Spindle travel 150 mm
Spindle taper Morse No.4
Range of spindle speeds 75-1220 rpm, off 6
Range of spindle feeds 0.1-0.25 mm/rev, off 3
Diameter of outer column 200 mm
Power of main motor 1.5 kW
Overall Dimensions: 1,407 mm (L) x 720 mm (W) x 1,885 mm (H)
Weight approximately 1.2 ton

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used radial drill (radial drill, radial drilling machine, radial arm drill machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.

Home | Radial Drill Listing | New Machinery Categories

At Sunshine Innovation, we take care of our customers, thereby ensuring customers come back to us for future orders.

Asquith 3 meter Radial Drill
Asquith OD4 Radial Drill
Length of Arm 3048mm
Drilling Diameter 100mm

Asquith-Archdale 8ft Radial Drill
Asquith-Archdale
8ft Radial Drill
Max Drill Diameter 2"
