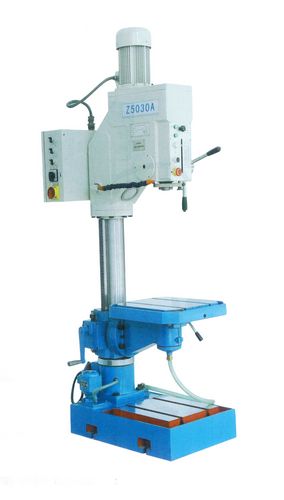

China Z5030A Vertical Drilling Machine

NDPTT005:

New, China Z5030A Vertical Drilling Machine

  • Max drilling capacity 30mm
  • Max tapping capacity M18
  • Distance from spindle axis to generating line of column 315mm
  • Max distance from spindle nose to worktable surface 520mm
  • Max distance from spindle nose to worktable surface of base 1080mm
  • Max spindle travel 135mm
  • Max adjustment of worktable and table rest 480mm
  • Swivel of table and table reat ±45°
  • Spindle bore taper Morse No. 3
  • Spindle speed 70-2600 r/min (12 steps)
  • Spindle feed range 0.1, 0.2, 0.3 mm/r (3 steps)
  • Column diameter 125mm
  • Effective working area of table: (LxW) 450x450mm
  • Effective working area of base plate: (LxW) 690x480mm
  • Dimension of T-slot of table and base plate: 2-14mm; 2-16mm
  • AC motor: 1.1/1.5 kw; 960/1450 r/min
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used pillar drill (pillar drill, pillar drilling machine, column drill, vertical drilling machine, pedestal drill), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
