Vertical Boring Machine

NBVFT006:

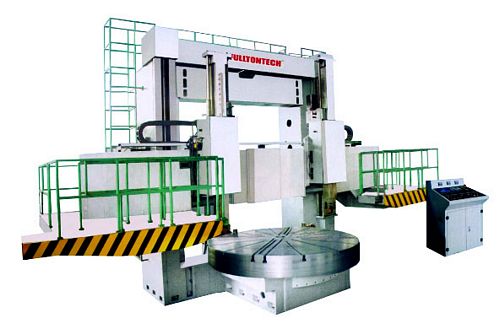

New, China C5231-2 Conventional Double Column Vertical Turret Lathe

Max machining diameter 3100mm
Diameter of worktable 2830mm
Max weight of workpiece 10 ton
Max height of workpiece 2000mm
Speed of worktable 2-63 r/min (16 step)
Max torque of table turning 63000 N.m
Ram traverse 1300mm
Horizontal traverse of left tool head 1720mm; right tool head 1720mm
Vertical traverse of left tool head 1300mm; right tool head 1300mm
Digital readout system
Main motor 55 kw
Weight approximately 43 ton

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used vertical boring machine (vtl, vbm, vertical borer, vertical lathe, vertical boring machine, vertical boring mill, vertical turning lathe, vertical boring mill), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
