Vertical Boring Machine

NBVDB069:

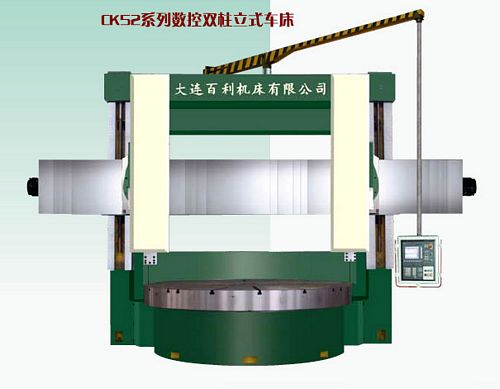

New, China CKQ5240/3 CNC Double Column Vertical Lathe

Max cutting diameter 4000mm
Table diameter 2830/3150mm
Max height of workpiece 2500mm
Max weight of workpiece 15 ton
Max torque of table 63 KN.m
Range of table speeds 2 - 63 r/min, off 16
Max cutting force of rail head 35 KN
Swivel of rail head ±30°
Range of feed rates 0.2 - 145 mm/min
Horizontal travel of rail head 2150mm
Ram travel of rail head 1250mm
Rapid traverse of tool head 1550 mm/min
Height of tool bar section (WxH): 40 x 50 mm
Main motor AC:55 kW
Overall Dimensions: 6,900 mm (L) x 5,100 mm (W) x 5,700 mm (H)
Approx weight 36/38 ton

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used vertical boring machine (vtl, vbm, vertical borer, vertical lathe, vertical boring machine, vertical boring mill, vertical turning lathe, vertical boring mill), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
