Sunshine Innovation Sams Vertical Boring Machine


China C516 Single Column Vertical Lathe

NBVDB053:

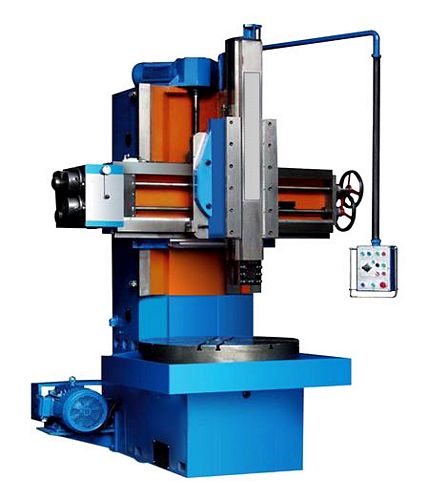

New, China C516 Single Column Vertical Lathe

  • Max turning diameter 630mm
  • Table diameter 630mm
  • Max weight of workpiece 0.8 ton
  • Max height of workpiece 600mm
  • Range of table speeds 60 - 200 r/min, off 3
  • Horizontal travel of rail head 550mm
  • Vertical travel of rail head 500mm
  • Swivel of rail head ±30°
  • Range of feed rates 15 - 45 mm/min, off 12
  • Rapid travel of tool heads 1800 mm/min
  • Rise and fall speed of beam 440 mm/min
  • Height of tool bar section (WxH): 30 x 30mm
  • Motor 7.5 kW
  • Overall Dimensions: 1,821 mm (L) x 1,310 mm (W) x 2,560 mm (H)
  • Weight approximately 3.7 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used vertical boring machine (vtl, vbm, vertical borer, vertical lathe, vertical boring machine, vertical boring mill, vertical turning lathe, vertical boring mill), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
