Vertical Boring Machine

NBVDB051:

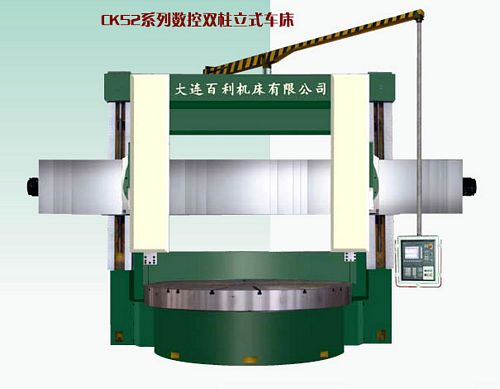

New, China CKQ5263/1 CNC Double Column Vertical Lathe

Max cutting diameter 6300mm
Table diameter 4500/5000mm
Max height of workpiece 2500mm
Max weight of workpiece 50 ton
Max torque of table 128 KN.m
Range of table speeds 0.34 - 34 r/min, off 16
Max cutting force of rail head 60 KN
Swivel of rail head ±30°
Range of feed rates 0.2 - 145 mm/min
Horizontal travel of rail head 3400mm
Ram travel of rail head 1600mm
Rapid traverse of tool head 2500 mm/min
Height of tool bar section (WxH): 60 x 60 mm
Main motor DC:75 kW
Overall Dimensions: 11,500 mm (L) x 7,500 mm (W) x 9,350 mm (H)
Weight approximately 120 ton

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used vertical boring machine (vtl, vbm, vertical borer, vertical lathe, vertical boring machine, vertical boring mill, vertical turning lathe, vertical boring mill), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
