Vertical Boring Machine

NBVDB049:

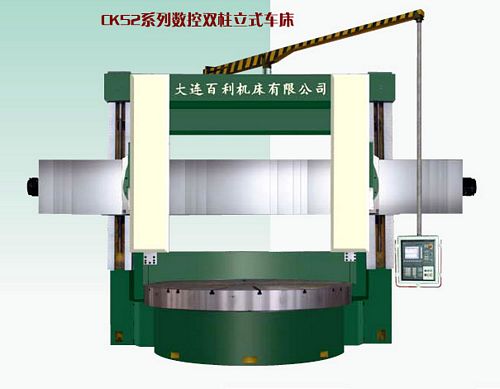

New, China CK5250/1 CNC Double Column Vertical Lathe

Max cutting diameter 5000mm
Table diameter 4500mm
Max height of workpiece 2500mm
Max weight of workpiece 40 ton
Max torque of table 100 KN.m
Range of table speeds 0.42 - 42 r/min, off 16
Max cutting force of rail head 50 KN
Swivel of rail head ±30°
Range of feed rates 0.2 - 145 mm/min
Horizontal travel of rail head 2765mm
Ram travel of rail head 1600/2000mm
Rapid traverse of tool head 2500 mm/min
Height of tool bar section (WxH): 50 x 50 mm
Main motor DC:75 kW
Overall Dimensions: 10,000 mm (L) x 6,870 mm (W) x 9,110 mm (H)
Weight approximately 100 ton

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used vertical boring machine (vtl, vbm, vertical borer, vertical lathe, vertical boring machine, vertical boring mill, vertical turning lathe, vertical boring mill), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
