Vertical Boring Machine

NBVDB033:

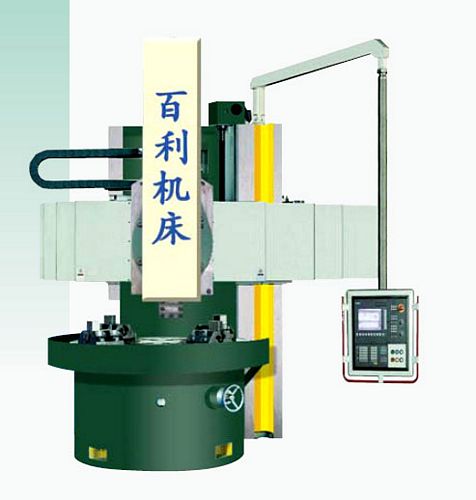

New, China CK5116/2 CNC Single Column Vertical Lathe

Max cutting diameter 1600mm
Table diameter 1400mm
Max height of workpiece 1400mm
Max weight of workpiece 5 ton
Max torque of table 25 KN.m
Range of table speeds 5 - 160 r/min, off 16
Max cutting force of rail head 22 KN, side head 18 KN
Swivel of rail head ±30°
Range of feed rates 0.8 - 86 mm/min, off 12
Horizontal travel of rail head 915mm
Ram travel of rail head 800mm
Ram horizontal travel of side head 600mm
Vertical travel of side head 980mm
Rapid traverse of tool heads 1800 mm/min
Rise-and-fall speed of beam 440mm
Height of tool bar section (WxH): 30 x 40 mm
Main motor 30 kW
Overall Dimensions: 2,830 mm (L) x 2,670 mm (W) x 3,210 mm (H)
Weight approximately 12 ton

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used vertical boring machine (vtl, vbm, vertical borer, vertical lathe, vertical boring machine, vertical boring mill, vertical turning lathe, vertical boring mill), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
