In-Situ Boring Machine

NBISR011:

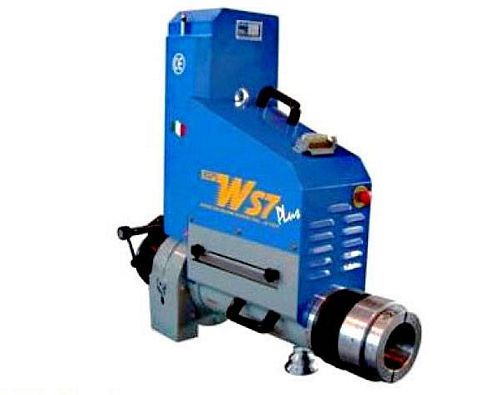

New, Sir WS7 Plus Boring and Welding Machine

Boring diameter 400mm - 1700mm (15.75" - 66.93")
Welding diameter 400mm - 1700mm (15.75" - 66.93")
Tool Holder Shaft dia 100mm (3.94")
Tool Holder Shaft length 3,000 mm single shaft (potentially connectable)
Welding technology: SPIRAL (continuous with variable step)
Longitudinal stroke: Unlimited with step of 260mm (10.24")
Rotation motor CC NORMA CE
Feed motor CC NORMA CE
Feed: ELECTRIC - MECHANICAL
Output torque at the bar: 6,300 Nm (41 RPM)
Max. speed 41 RPM
Feed rate 0 - 0.4 mm (0 - 0.02 in/rev) RPM
Max. feed speed 53 mm/min
Removal material 172 cm³/min
Drive unit weight 105 kg

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used in-situ boring machine (in situ boring machine, portable borer, portable line borer), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
