Horizontal Borer

NBHSY127:

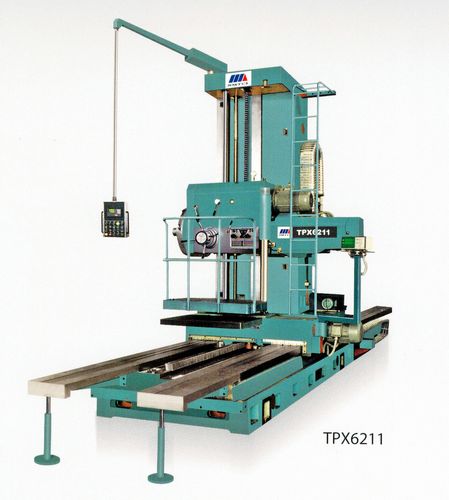

New, China TPX6211x30 Horizontal Boring & Milling Machine

China Horizontal Boring & Milling Machine
Model TPX6211x30
Spindle diameter 110mm
Spindle taper Morse No. 6 (Optional ISO7:24 No50)
Max spindle torque 1225 Nm
Max spindle thrust 12250 N
Spindle speeds 8 - 1000 r/min, off 22
Max facing head torque 1960 Nm
Facing head diameter 630mm
Facing head speeds 4 - 200 r/min, off 18
Table (optional)
X-axis travel 3000mm
Y-axis travel 1600mm
Max travel of boring spindle (W-axis) 600 mm
Slide travel of facing plate (U-axis) 180 mm
Rapid travel (X/Y/U/W) 2500 mm/min
Feed rates 0.04 - 6 / 0.01 - 1.88 mm/rev
Power of main motor 7.5 kW
Measurement system reading precision (X/Y) 0.005mm

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used horizontal borer (horizontal borer, horizontal boring mill, horizontal boring machine, hbm), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
