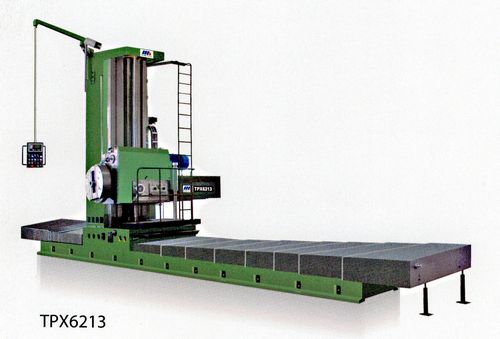

New, China TPX6213x67 Horizontal Boring & Milling Machine

China Horizontal Boring & Milling Machine
Model TPX6213x67
Spindle diameter 130mm
Spindle taper Metric 80 (optional ISO7:24No.50)
Max spindle torque 3136 N.m
Max spindle thrust 31360 N
Spindle speeds 4 - 800 r/min, off 24
Max facing head torque 4900 N.m
Facing head diameter 750mm
Facing head speeds 2.5 - 125 r/min, off 18
X-axis 6700mm
Y-axis travel 2000 mm
Max travel of boring spindle (W-axis) 900 mm
Slide travel of facing plate (U-axis) 250 mm
Rapid travel (X/Y/U/W) 2500 mm/min
Feed rates 0.05 - 8 / 0.01 - 2 mm/rev
Power of main motor 15 kW
Measurement system reading precision (X/Y) 0.005mm

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used horizontal borer (horizontal borer, horizontal boring mill, horizontal boring machine, hbm), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
