Horizontal Borer

NBHSY109:

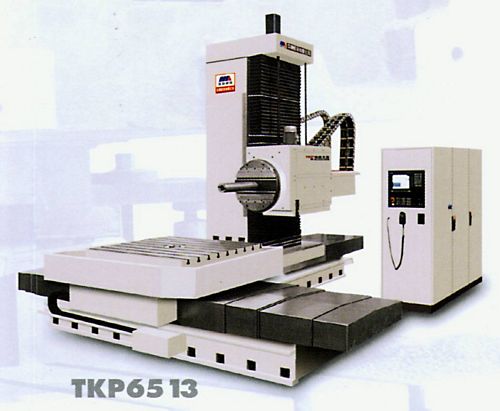

New, China Czech TKP6513 CNC Horizontal Boring & Milling Machine

• Spindle Diameter 130 mm
• Table Size 1400x1600 mm
• Max Load on Table 10000 kg
• Worktable T-Slot 28 mm X 9
• Spindle Taper ISO7:24 No.50
• Spindle Speed 10-2000 RPM
• Max Torque 2000 Nm
• Distance Between Spindle Axis And Table Top 100-1700 mm
• Min Distance Between Spindle End And Table 17 mm
• Table X Traverse 2000 mm (Opt. 2500, 3000)
• Headstock Y Travel 1600 mm (Opt. 2000)
• Column Z Travel 1600 mm (Opt. 2000)
• Spindle W Travel 800 mm
• Facing Plate Slide U Travel 200 mm
• Rotation B of Rotary Table 360 Deg
• Traverse Speed (mm/min): X / Y / Z 1-6000, W / U 1-3000, B 0-1 r/min
• Rapid Traverse: X / Y / Z 9 m/min, W / U 3 m/min, B 1 r/min
• Power of Main Motor 22 kW (30 kW for 30 min continuous)
• AC Servomotors Rated Torque: X/Z/W/B 38 Nm, Y 55 Nm, U 23 Nm
• Positioning Accuracy X / Y / Z: +/- 0.008 mm Over Full Length (Opt. +/- 0.005)
• Positioning Accuracy B (4 X 90 Deg): +/- 7.5" (Opt. +/- 2")
• Repeatability X / Y / Z: +/- 0.005 mm (Opt. +/- 0.0025), B (4 X 90 Deg): +/- 2"
• CNC System Siemens 840D (Opt. Fanuc 18i)
• Total Power 70 kVA
• Overall Dimensions: 6,800 mm (L) x 6,230 mm (W) x 4,530 mm (H)
• Weight approximately 35 ton

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

We source machinery worldwide to give our customers ample choice for selection.
