Horizontal Borer

NBHRS001:

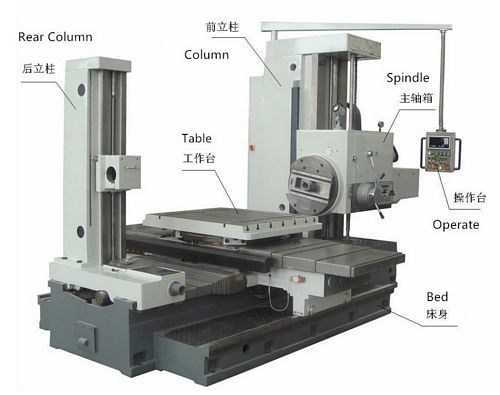

New, China TPX6111B/3 Horizontal Boring and Milling Machine

Model TPX6111B/3
Spindle Diameter 110mm
Table Size 1600 x 1500 mm
Load of Table 5000 kg
Newall Digital Read Out, accuracy 0.005mm
Torque of Spindle 1225 Nm
Torque of Facing Plate 1960 Nm
Max Force on Spindle 12250 N
Spindle Taper ISO50 2:24
Table Travel Lengthwise (with Back Column) 600mm
Table Travel Crosswise 1600mm
Spindle Center to Table 0 to 1200mm
Spindle Travel 600mm
Travel of Facing Plate 180mm
Spindle Speeds 8-1000 RPM, 22 Steps
Facing Plate Speeds 4-200 RPM, 18 Steps
Total Power 15 kW
Boring Accuracy IT7
Surface Roughness Accuracy 3.2-1.6μ
Overall Dimensions: 5,028 mm (L) x 3,359 mm (W) x 3,079 mm (H)
Weight approximately 14 ton

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used horizontal borer (horizontal borer, horizontal boring mill, horizontal boring machine, hbm), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
