Sunshine Innovation Sams Horizontal Borer


China TK6513B x 2 Double Sided Boring and Miling Machines

NBHKM043:

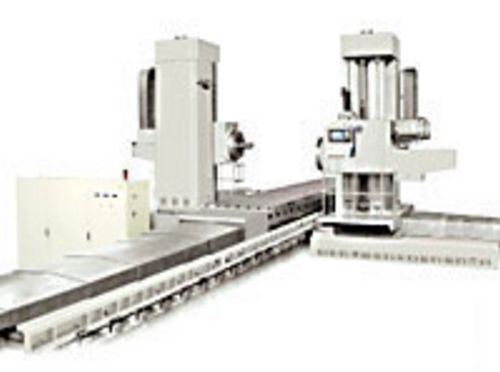

New, China TK6513B x 2 Double Sided Boring and Miling Machines

  • Boring Spindle Dia. 130 mm
  • Spindle Taper ISO 50#
  • Spindle Speed 7-1500 RPM
  • Power of spindle motor (rated /30 min) 30/41 kW
  • Max. torque of spindle 2865/ (2170 nm)
  • Max. spindle thrust 20000 N
  • Table size (L x W) 4000 x 1400 mm
  • Max. load of table 20000 kg
  • Transverse travel of spindle head 4000 mm
  • Vertical travel of spindle head  1600 mm
  • Longitudinal travel of table 1250 mm
  • Axial travel of spindle 900 mm
  • CNC system siemens 840D
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used horizontal borer (horizontal borer, horizontal boring mill, horizontal boring machine, hbm), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
