NBHKM035:

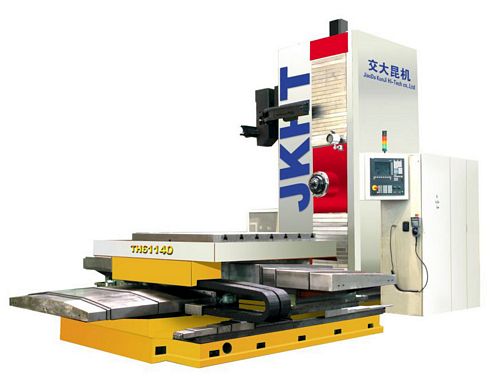

New, China TH61140 Horizontal Boring & Milling Machining Center

• China Horizontal Boring & Milling Machining Center
• Table Size (L x W) 1400 x 1400 mm
• Max. Load of Table 5000 kg
• Table T-slot (no. & width) 7--28H8
• Max gyration diameter of workpiece loaded on table 2000mm
• Spindle diameter 100mm
• Extended quill diameter 200mm
• Spindle taper ISO 50#
• Spindle Speed 10 - 3000 RPM
• Spindle motor 22 kW
• Max. torque of spindle 1050 N.m
• Max. spindle thrust 15000 N
• Max. boring diameter of spindle 300mm
• Max. drilling diameter of spindle 50mm
• Tool shank type JT50 (optional BT50)
• Pullstud type LDD-50D (MAS403A P50T-1)
• Cross travel of table (X) 1700mm
• Vertical travel of spindle head (Y) 1400mm
• Longitudinal travel of table (Z) 1400mm
• Spindle travel (W) 500mm
• Table rotates (B) 360°
• Feed rate:  X, Y, Z 1 - 5000 mm/min; W 1 - 2500 mm/min; B 0.003 - 2 r/min
• Rapid traverse:  X, Y, Z 10000 mm/min; W 5000 mm/min; B 2 r/min
• Positioning accuracy:  X, Y, Z 0.02mm; W 0.02mm; B 10"
• Repeatability:  X, Y, Z 0.01mm; W 0.01mm; B 7"
• ATC capacity 40; ATC type chain
• Max. diameter of unit tool 125/200 mm
• Max. weight of unit tool 30 kg
• Tool change time (tool to tool): 14s
• Main motor 83 Kva
• CNC System SIEMENS 840D
• Overall Dimensions: 7,000 mm (L) x 4,200 mm (W) x 3,900 mm (H)
• Weight approximately 27 ton

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

We will source worldwide for machinery if we do not carry machinery to your required capacity.
