Horizontal Borer

NBHKM032:

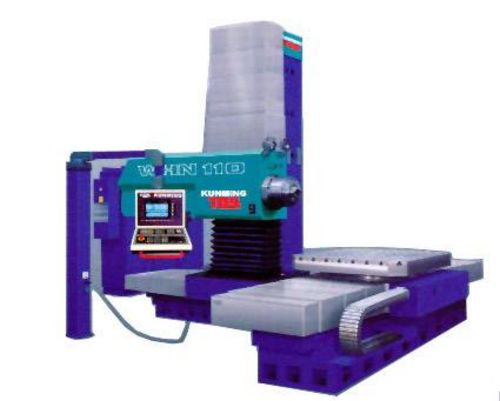

New, China WHN110QMC CNC Boring Machine

• Workspindle Dia. 112 mm
• Spindle Taper ISO 50
• Spindle Speed Range 10-2800 RPM
• Power of Spindle Motor 37 kW
• Table Transverse Travel  X:
•      -Model with Rotary or the Pallet 1600, 2000, 2500 mm
•      -Model with Fixed Table 1600, 2000 mm
• Headstock Vertical Travel Y:
•      -Machine with Standard Table 1250, 1400, 1600 mm
•      -Machine with Pallet 1120, 1250, 1400 mm
• Column Longitudinal Travel Z 800, 1000, 1250 mm
• Spindle Stroke W 710 mm
• Feed Range X,Y,Z,W 1-6000 mm/min     B, 0.003-1.5 mm/min
• Rapid Traverse X,Y,Z,W 10000 mm/min  B, 2.5 min-1
• Minimum Height of Spindle Axis
•      -Above Standard Rotary Table 50 mm
•      -Above Pallet  -
• Max. Workpiece Weight:
•      -Machine with Standard Table 8000 kg
•      -Machine with Pallet 5000 kg
• Table Clamping Surface
•      -Rotary Table 1250 x 1400, 1400 x 1600 mm
•      -Fixed Table 1250 x 2000 mm
• Pallet Clamping Surface 1250 x 1400, 1250 x 1600 mm
• Table T-Slots
•      -Dimension  22H8 mm
•      -Pitch 160 mm
•      -Quantity 9,8 fixed table

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

Call or email us your machinery requirements, and let us do all the sourcing for you.
