Horizontal Borer

NBHKM025:

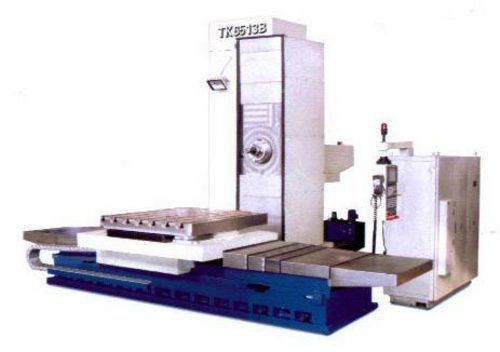

New, China TK6513B CNC Horizontal Boring Machine

Table size 1800 mm x 1600 mm
Max. Load of Table 10000 kg
Boring Spindle Dia. 130 mm
Dia. of Milling Spindle 221.44 mm
Spindle Taper ISO 50
Spindle Speed 7-1500 RPM
Power of Spindle Motor 30 RPM
Max. Torque of Boring Spindle 2865 N.m
Max. Spindle Thrust 20000 N
Max. Torque of Milling Spindle 3000 N.m
Transverse Travel of Table 2500 mm
Vertical Travel of Spindle Head 1600 mm
Longitudinal Travel of Column 1250 mm
Axial Travel of Spindle 900 mm
Table Rotation 360 degrees
CNC System SIEMENS 840D (FANUC18i)
Weight approximately 35 ton

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used horizontal borer (horizontal borer, horizontal boring mill, horizontal boring machine, hbm), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
