Horizontal Borer

NBHKM023:

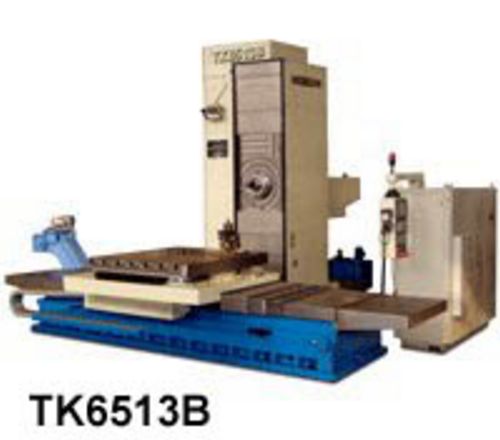

New, China TK6513 CNC Horizontal Boring Machine

Boring Spindle Dia. 130 mm
Dia. of Milling Spindle 221.44 mm
Spindle Taper ISO 50#
Spindle Speed 2-1500 RPM
Power of Spindle Motor (Rated/30Min) 30/41 RPM
Max. Torque of Boring Spindle 2500 N.m
Max. Spindle Thrust 25000 N
Max. Torque of Milling Spindle 3500 N.m
Ram Size (L X W) 420 X 480 mm
Table Size(L X W) 2000 X 2000 mm
Max. Load of Table 20000 kg
Transverse Travel of Table 2000 mm
Vertical Travel of Spindle Head 2000 mm
Longitudinal Travel of Column 1500 mm
Axial Travel of Spindle 800 mm
Ram Travel 800 mm
Table Rotation 360 degrees
CNC System SIEMENS 840D (FANUC18i)
Weight approximately 42 ton

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used horizontal borer (horizontal borer, horizontal boring mill, horizontal boring machine, hbm), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
