Horizontal Borer

NBHKM012:

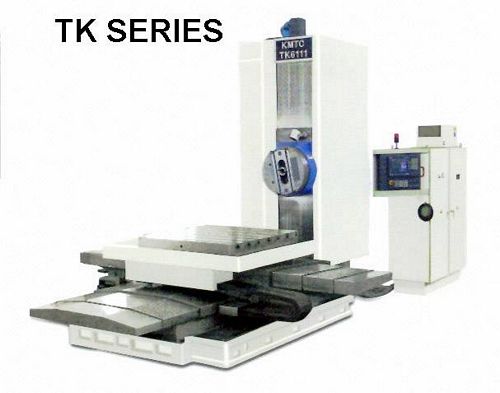

New, China TK6113 Horizontal Boring Machine

Boring Spindle Dia. 130 mm
Spindle Taper ISO 50#
Max. Spindle Taper 2000 mm
Max. Spindle Thrust 25000 N
Spindle Speed 6-1000 RPM
Power of Spindle Motor (Rated/30Min) 17/22.5 kW
Speed of Facing Chuck 6-165 RPM
Table Size(L x W) 1600 x 1400 mm
Max. Load of Table 8000 kg
Transverse Travel of Table (X) 1800 mm
Vertical Travel of Spindle Head (Y) 1600 mm
Longitudinal Travel of Table (W) 2000 mm
Axial Travel of Spindle (Z) 900 mm
Table Rotation (B) 360 degrees
Traverse of Facing Chuck Slide 200mm
CNC System Siemens 840D-(CNC FANUC 18i)
Overall Dimensions: 6,720 mm (L) x 4,104 mm (W) x 4,085 mm (H)
Weight approximately 32 ton

The above new machine is available from Sunshine Innovation for IMMEDIATE sale. The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used horizontal borer (horizontal borer, horizontal boring mill, horizontal boring machine, hbm), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
