Horizontal Borer

NBHKM007:

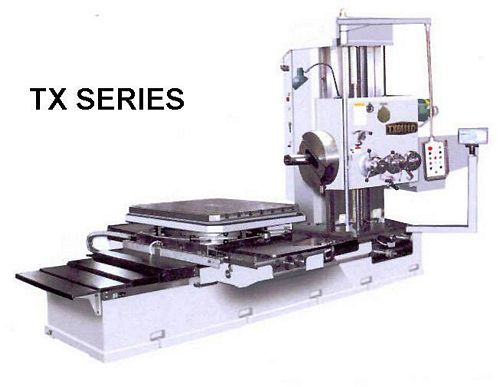

New, China TX6113A/2 Horizontal Boring Machine

Spindle Diameter 130 mm
Spindle Taper ISO 50#
Spindle Speed 6.6-755 RPM
Power of Main Drive Motor 11 kW
Max.Driling Capacity of Spindle 80 mm
Max.Boring Capacity of Spindle 350 mm
Speed of Facing Chuck 4.4-165 RPM (14step)
Travel of Facing Chuck Slide 200 mm
Max. Boring Capacity of Facing Chuck 700 mm
Table Size (L x W) 1500 x 1250 mm
Max.Load of Table 4000 kg
Transverse Travel of Table (X) 1830 mm
Vertical Travel of Spindle Head (Y) 1400 mm
Longitudinal Travel of Table (Z) 2000 mm
Axial Travel of Spindle 760 mm
Feeds of Rates 0.04-6 mm/rev (12step)
DRO X, Y
Overall Dimensions: 6,000 mm (L) x 3,400 mm (W) x 3,400 mm (H)
Weight approximately 27 ton

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used horizontal borer (horizontal borer, horizontal boring mill, horizontal boring machine, hbm), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
