Cylinder Borer

NBCHG005:

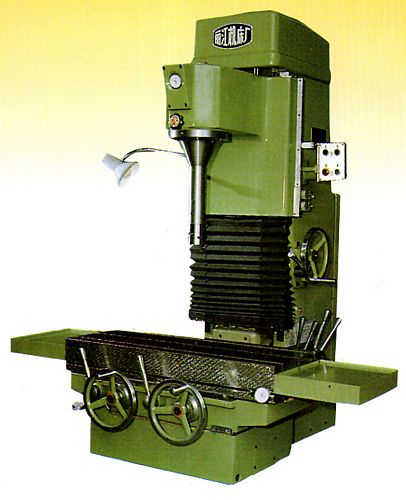

New, China T7210A Vertical Fine Boring Machine

Max Boring Diameter 100 mm
Max Boring Depth 300 mm
Spindle Travel 410 mm
Spindle Speeds 65-1000 rpm
Spindle Feed Rates 0.05-0.20 mm/rev
Distance from Spindle Axis to Carriage Vertical Plane 290 mm
Table Longitudinal Travel 650 mm
Table Latitudinal Travel 100 mm
Dimension Accuracy IT7
Roundness 0.002
Cylindricity 0.01/300
Power 2.3 kW
Standard Accessories: Spindle 75mm (76-110mm), Cutting Depth Control Device, Boring Measuring Device, Tool Box
Optional Accessories: Spindle 56mm (57-78mm), Spindle 45mm (46-60mm), Universal Spindle 21-48mm
Overall Dimensions: 1,600 mm (L) x 1,500 mm (W) x 2,000 mm (H)
Weight approximately 2.0 ton

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used cylinder borer (cylinder boring machine, cylinder borer, engine block boring machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
