Bandsaw

NABEA002:

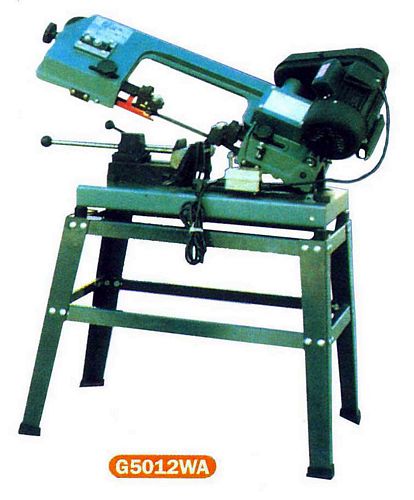

New, China G5012WA Metal Cutting Bandsaw

Capacity 90°: 114mm round, 100mm x 150mm rectangle
Capacity 45°: 70mm round, 70mm x 60mm rectangle
Blade size 1638mm x 0.6mm x 12.5mm
Motor: 1/2HP 60 Hz @ 1700 rpm or 50Hz @ 1400 rpm
Blade speeds: 24-36-61 m/min (60Hz) / 20-29-50 m/min (50Hz)
Vertical cutting plate size 245mm x 178mm
Vise tilt 0° - 45°
Overall Dimensions: 920 mm (L) x 480 mm (W) x 500 mm (H)
Weight approximately 61 kg

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used bandsaw (bandsaw machine, metal band saw), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
