Zhongyang Sams Slotter


China B50100 Slotting Machine

NSLLM005:

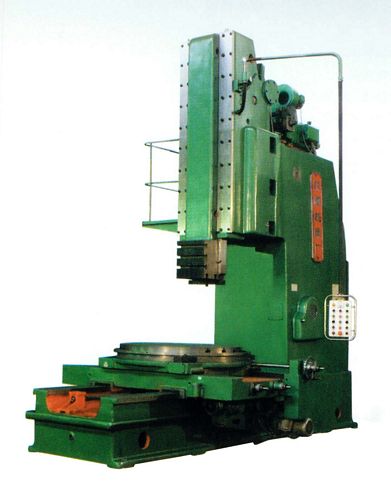

New, China B50100 Slotting Machine

  • Max slotting length 1000mm (Internal slotting 850mm)
  • Table diameter 1250mm
  • Cutting stroke speed 4 - 25 m/min
  • Return stroke speed 7 - 25 mm/min
  • Max cutting force (within ram traverse speed of 10 - 20 m/min): 24500N
  • Max longitudinal table traverse 1200mm
  • Max cross table traverse 1000mm
  • Distance between tool holding surface and column front 1120mm
  • Max weight of work piece 4000kg
  • Range of feed: Longitudinal 0.2 - 5 mm/double stroke                               Cross 0.2 - 5 mm/double stroke                               Circular (along Φ700)) 0.4 - 10 mm/double stroke
  • Distance between worktable and lower side of slide 1140mm
  • Table rapid traverse speed (longitudinal or cross) 500 m/min
  • Main motor 30 kW
  • Overall Dimensions: 4,400 mm (L) x 2,830 mm (W) x 5,730 mm (H)
  • Weight approximately 22 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used slotter (slotter, slotting machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
