China BA5063 Slotting Machine

NSLLM004:

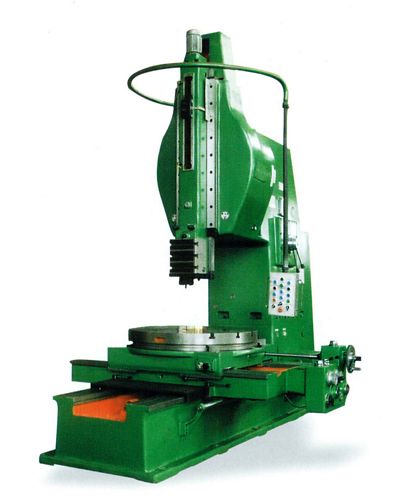

New, China BA5063 Slotting Machine

  • Max slotting length of ram 630mm
  • Diameter of worktable 1120mm
  • No. of ram strokes per min 8, 12, 20, 30
  • Inclination of ram head  ±10°
  • Distance between tool holding surface and column front 1120mm
  • Collet for slotting tool with width of T slots 22H11mm
  • Distance between worktable and lower side of slide 800mm
  • Max longitudinal travel of table 1000mm
  • Max transverse travel of table 700mm
  • Range of table longitudinal and transverse feeds ram stroke 0.10, 0.20, 0.32, 0.54, 0.80, 1.30
  • Range of table rotary feed deg per ram stroke 3’, 6’, 9’36", 16’12", 24’, 39’
  • Max cutting force 20000N
  • Max weight of worktable 2000kg
  • Width of T slots in the worktable 22H11 kW
  • Main motor 10 kW
  • Overall Dimensions: 3,580 mm (L) x 2,390 mm (W) x 3,660 mm (H)
  • Weight approximately 11 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used slotter (slotter, slotting machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
