Zhongyang Sams Slotter


China B5032 Slotting Machine

NSLLM002:

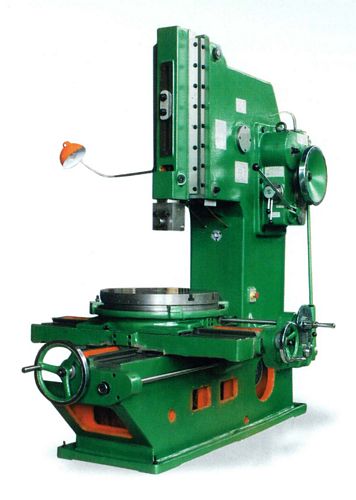

New, China B5032 Slotting Machine

  • Max slotting length 320mm
  • Table diameter 630mm
  • Max cutting force 7500N
  • Max dimension of workpiece  (LxH): 600 x 320mm
  • Max weight of workpiece 500kg
  • No. of ram strokes per min 20, 32, 50, 80
  • Vertical adjustment of ram 315mm
  • Inclination of ram 0°  -  8°
  • Distance between tool holding surface and column front 600mm
  • Max tool shank size (WxH): 25 x 40mm
  • Distance between table surface and low end of ram 490mm
  • Max longitudinal travel of table 620mm
  • Max cross travel of table 560mm
  • Range of table longitudinal and cross power feeds 0.08 - 1.12 mm
  • Range of table rotary power feeds 0.052°  -  0.783°
  • Main motor 4 kW
  • Rotating speed of main motor 960 rpm
  • Overall Dimensions: 2,290 mm (L) x 1,525 mm (W) x 2,285 mm (H)
  • Weight approximately 3.5 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used slotter (slotter, slotting machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
