China B5032 Slotting Machine

NSLEA003:

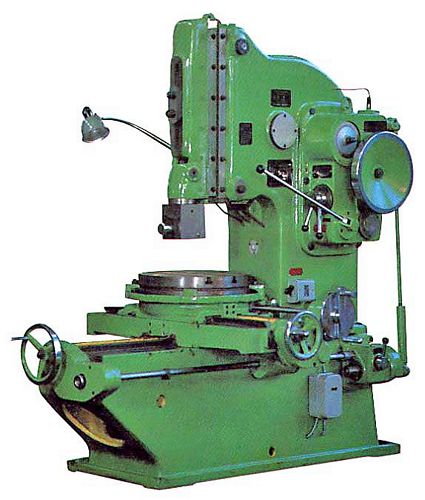

New, China B5032 Slotting Machine

  • Maximum slotting length 320mm
  • Max. dimensions of workpiece (LxH) 600mm  x 320mm
  • Max. weight of workpiece 500 kgs
  • Maximum cutting force 750 kgs
  • No. of ram strokes per min 20, 32, 50, 80
  • Vertical adjustment of ram 315mm
  • Inclination of ram 0 - 8°
  • Distance between tool holding surface and column front 600mm
  • Maximum tool shank size (WxH) 25 x 40mm
  • Table diameter 630mm
  • Distance between table surface and low end of ram 490mm
  • Maximum longitudinal travel of table 630mm
  • Maximum cross travel of table 560mm
  • Range of table longitudinal and cross power feeds 0.08 - 1.21 mm
  • Range of table rotary power feeds 0.052° - 0.783°
  • Power of main drive motor 4 kW
  • Rotating speed of main drive motor 960 rpm
  • Overall Dimensions: 2,261 mm (L) x 1,496 mm (W) x 2,245 mm (H)
  • Weight approximately 3.0 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used slotter (slotter, slotting machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
