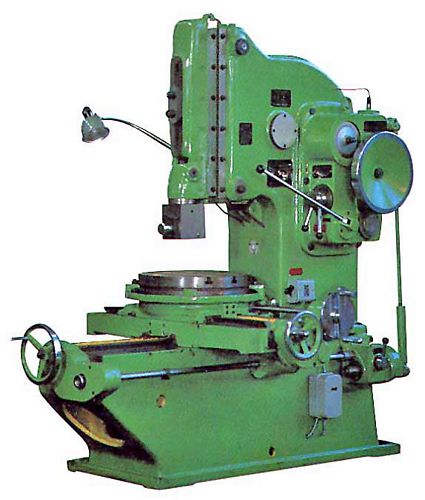

China B5020 Slotting Machine


New, China B5020 Slotting Machine

  • Maximum slotting length 200mm
  • Max. dimensions of workpiece (LxH) 485mm  x 200mm
  • Max. weight of workpiece 400 kgs
  • Maximum cutting force 550 kgs
  • No. of ram strokes per min 32, 50, 80, 125
  • Vertical adjustment of ram 230mm
  • Inclination of ram 0 - 8°
  • Distance between tool holding surface and column front 485mm
  • Maximum tool shank size (WxH) 25 x 40mm
  • Table diameter 500mm
  • Distance between table surface and low end of ram 320mm
  • Maximum longitudinal travel of table 500mm
  • Maximum cross travel of table 500mm
  • Range of table longitudinal and cross power feeds 0.08 - 1.21 mm
  • Range of table rotary power feeds 0.052° - 0.783°
  • Power of main drive motor 3 kW
  • Rotating speed of main drive motor 1430 rpm
  • Overall Dimensions: 1,916 mm (L) x 1,305 mm (W) x 1,995 mm (H)
  • Weight approximately 2.0 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used slotter (slotter, slotting machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
