Zhongyang Sams Shaper


China SM500 Shaper

NSHSJ001:

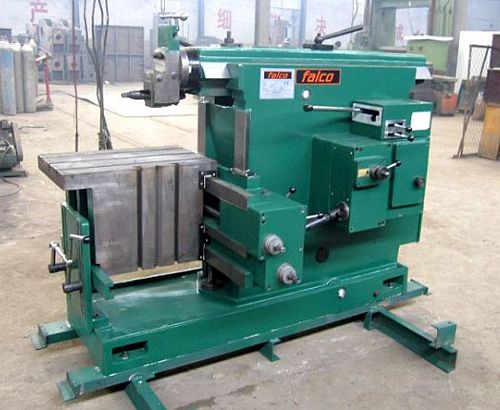

New, China SM500 Shaper

  • Max shaping length 500mm
  • Max distance from lower edge of ram to table 370mm
  • Max travel of horizontal table 500mm
  • Max travel of vertical table 300mm
  • Max swivel angle of table (without vice) 90
  • Max swivel angle of table (with vice) 55
  • Max vertical travel of tool head 110mm
  • Frequency of stroke: 15, 24, 37, 51, 64,  80, 102, 126, 158
  • Overall Dimensions: 1,940 mm (L) x 1,170 mm (W) x 1,530 mm (H)
  • Weight approximately 1.8 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used shaper (shaper, shaping machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
