China B635A Shaping Machine

NSHLM005:

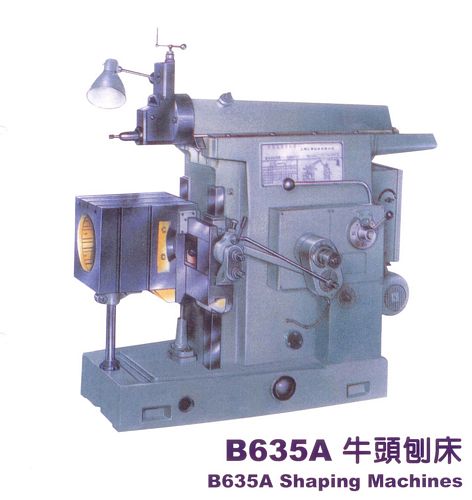

New, China B635A Shaping Machine

  • Max shaping length 350mm
  • Max distance from lower edge of ram to table 330mm
  • Max travel of table: Horizontal 400mm; Vertical 270mm
  • Max length between cutter and front bed end 500mm
  • Max ram travel 170mm
  • Max swivel angle of table: without vice ±90°  ; with vice ±55°
  • Max vertical travel of tool head 110mm
  • Frequency of ram strokes 32, 50, 80, 125 times/min
  • Pawl riding over 1ratchet tooth: Vertical 0.18mm; Horizontal 0.21mm
  • Pawl riding over 4 ratchet teeth: Vertical 0.73mm; Horizontal 0.84mm
  • Motor 1.5 kw  1400 r/min
  • Overall Dimensions: 1,390 mm (L) x 860 mm (W) x 1,455 mm (H)
  • Weight approximately 1.0 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used shaper (shaper, shaping machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
