Zhongyang Sams Shaper


China BA60100 Shaping Machine

NSHLM004:

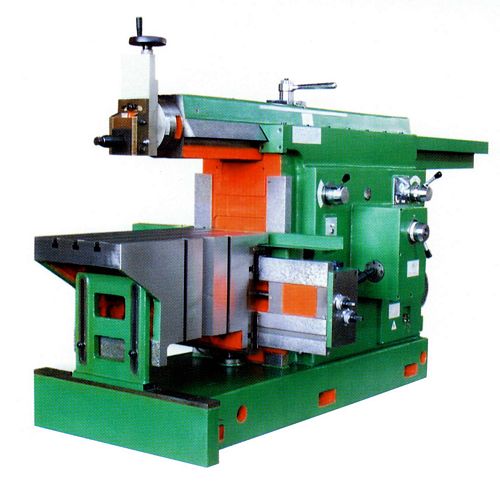

New, China BA60100 Shaping Machine

  • Max cutting length 1000mm
  • Table surface (LxW):1000 x 500mm
  • Max horizontal travel of table 800mm
  • Max vertical travel of table 320mm
  • Max distance from ram bottom to table surface 380mm
  • Max vertical travel of tool carrier 160mm
  • Max tool shank (WxH): 30 x 45mm
  • Max swivel of tool carrier ±45°
  • No. of ram strokes per min (8 steps): 8, 11, 16, 23, 32, 45, 64, 90
  • Range of table feeds per ram reciprocation:            Cross feed (10 steps) 0.25 - 2.50 mm; Vertical feed (10 steps) 0.13 - 1.27 mm
  • Width of central T slot of table 22mm
  • Main motor 7.5 kW
  • Overall Dimensions: 3,507 mm (L) x 1,455 mm (W) x 1,761 mm (H)
  • Weight approximately 4.5 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used shaper (shaper, shaping machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
