Zhongyang Sams Shaper


China B6050 Shaper

NSHLM001:

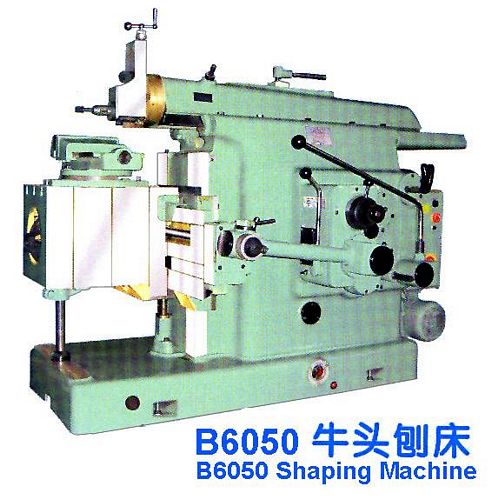

New, China B6050 Shaper

  • Max shaping length 500mm
  • Max distance from lower edge of ram to table 370mm
  • Max travel of table: horizontal 500mm; vertical 300mm
  • Max swivel angle of table: without vice 90°; with vice 55°
  • Max vertical travel of tool head 110mm
  • Frequency of ram strokes 15, 24, 37, 51, 64, 80, 102, 126, 158 times/min
  • Table feed per ram stroke:      Pawl riding over 1 ratchet tooth- vertical 0.0845mm, horizontal 0.133mm      Pawl riding over 10 ratchet teeth - vertical 0.845mm, horizontal 1.33mm
  • Motor 3kW x 1420 rpm
  • Vice (Width x Depth x Max opening) 240 x 64 x 215mm
  • Overall Dimensions: 1,943 mm (L) x 1,160 mm (W) x 1,533 mm (H)
  • Weight approximately 1.8 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used shaper (shaper, shaping machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
