Zhongyang Sams Shaper

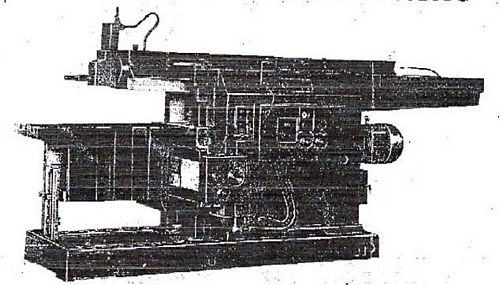

China BY60100C Hydraulic Shaping Machine

NSHEA002:

New, China BY60100C Hydraulic Shaping Machine

  • Maximum shaping length 1000mm
  • Cutting speed of ram (stepless) 3 - 44 m/min
  • Stroke 160mm
  • Distance from lower edge of ram to upper surface of table 80 - 400 mm
  • Maximum cutting force 28000 N
  • Maximum section of tool (WxH) 30 x 45mm
  • Upper working surface of table (LxW) 1000 x 500 mm
  • Width of T-slot on upper surface of table 22mm
  • Maximum horizontal travel of table 800mm
  • Horizontal feed of table per reciprocating stroke of ram (stepless) 0.25 x 5mm
  • Main motor 7.5 kW (10 HP)
  • Motor for rapid motion of table 0.75 kW
  • Overall Dimensions: 3,615 mm (L) x 1,574 mm (W) x 1,760 mm (H)
  • Weight approximately 4.2 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used shaper (shaper, shaping machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
