Zhongyang Sams Tool Cutter Grinder

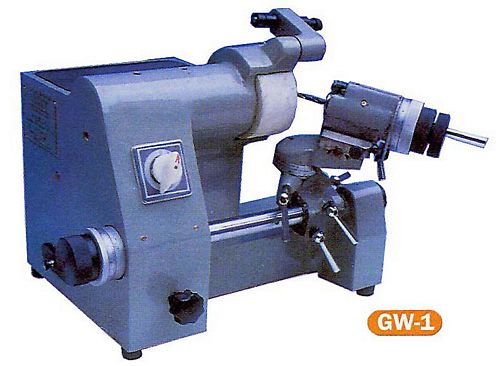

China GW-1 Universal Cutter Grinding Machine

NRTEA002:

New, China GW-1 Universal Cutter Grinding Machine

  • Spindle speed 5200 rpm
  • Cup wheel diameter 100mm, bore diameter 20mm
  • Clamping diameter of collets 3, 4, 6, 8, 10, 12, 15mm
  • Taper angle ground 0° - 180°
  • Negative taper angle ground 0° - 52°
  • Relief angle ground 0° - 44°
  • Motor: Capacity 0.18 kW (1/4 HP), speed 2810 rpm,
  • Motor: voltage 3 phase: 220, 380, 420, 440V
  • Motor Frequency: 50 Hz, 60 Hz
  • Dimensions: (LxWxH) 450mm x 350mm x 340mm
  • Weight 50 kgs
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used tool cutter grinder (tool & cutter grinder, knife grinder, drill sharpener, hob grinder), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
