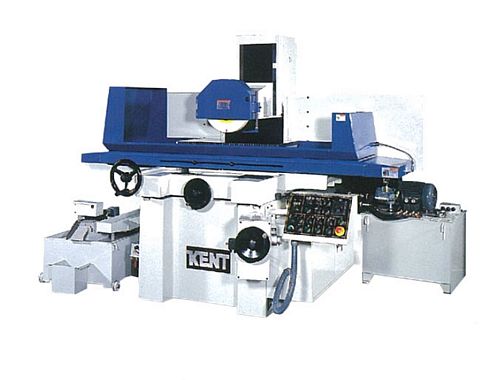

New, Taiwan KGS-84AHD Precision Surface Grinder
- Worktable are 800 x 400mm
- Longitudinal table travel 910mm
- Cross feed table travel 450mm
- Distance from spindle center to table 600mm
- Table load including magnetic chuck 700mm
- T-slot 14mm x 3 N
- Longitudinal table feed 5-25 m/min
- Power cross feed 1000/1200 mm/min (50 Hz/60 Hz)
- Hand wheel cross feed: 0.02mm (1 gra); 5mm ( 1 rev)
- Auto cross feed per stroke 0.25-20 mm
- Wheel dimension 355 x 38 x 127 mm
- Spindle speed: 1450/1740 rpm (50 Hz/60 Hz)
- Vertical on hand wheel 0.01/0.001 mm (1 gra); 2/0.5 mm (1 rev)
- Auto down feed elevation: 0.005-0.025 mm
- Power head increment: 133/160 mm/min (50 Hz/60 Hz)
- Spindle motor 5.6 kw
- Power elevation motor 0.08 kw
- Hydraulic motor 2.2 kw
- Dust collection motor 375 W
- Coolant motor 190 W
The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.
